Low Voltage Breakout - Insulcore Low Voltage

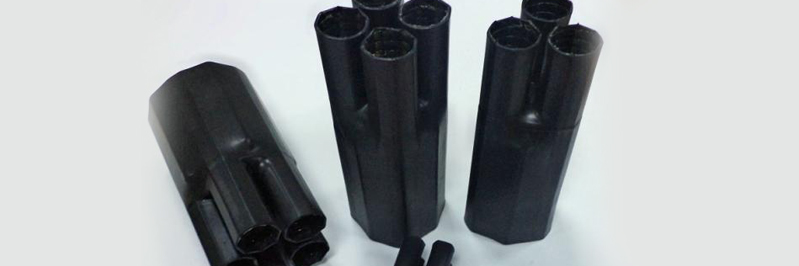

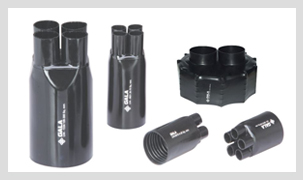

Insulcore Low Voltage Cable Breakouts provide a strong and permanent environmental seal to the crutch of 2, 3, 4, 5,6 and 7 core PVC, XLPE Rubber and PILC cables upto 3.3 KV rated voltage.
The Breakouts are Manufactured form high quality cross linked polyolefin material that offer an exceptional insulation and long term service reliability.
The Breakouts are internally coated with hot melt adhesive. These breakouts when installed in position provide 100% water/moisture proofness to the system.
Customised dimensions of Breakouts available on request.
Technical Qualification Report : QR 1012
Meets IP 68 (ingress Protection)

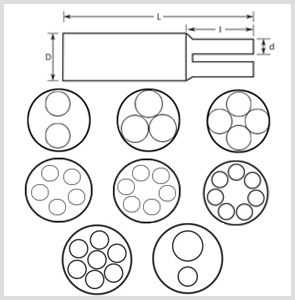

SELECTION CHART
All dimensions are in mm
- Code
- No. of Core
- Ds
- d
- L
- I
- Tb
- Tc
- Ds
- Df
- ds
- df
- Ls
- Lf
- ls
- lf
- min
- max
- min.
- max.
- min.
- max.
- min
- max
- ±10%
- f±10%
- LV2GBB-0308S
- 2
- 22
- 8
- 10
- 3
- 70
- 85
- 14
- 20
- 2.2
- 2.0
- LV2GBB-0308
- 2
- 28
- 8
- 12
- 3
- 70
- 85
- 15
- 20
- 2.2
- 2.0
- LV2GBB-0410
- 2
- 32
- 10
- 14
- 4
- 70
- 85
- 15
- 20
- 2.2
- 2.0
- LV2GBB-0410A
- 2
- 42
- 11
- 14
- 4
- 65
- 85
- 14
- 20
- 2.2
- 2.0
- LV2GBB-0720
- 2
- 60
- 20
- 24
- 7
- 95
- 120
- 25
- 34
- 3.0
- 2.5
- LV2GBB-0720 A
- 2
- 70
- 30
- 30
- 8
- 95
- 120
- 25
- 34
- 3.0
- 2.5
- LV2GBB-1565
- 2
- 110
- 65
- 45
- 15
- 100
- 138
- 40
- 58
- 2.2
- 2.0
- LV2GBB-1565A
- 2
- 156
- 65
- 50
- 15
- 100
- 138
- 40
- 58
- 2.2
- 2.0
- LV2GBB-2075
- 2
- 170
- 75
- 35
- 20
- 145
- 205
- 45
- 80
- 3.1
- 2.9
- LV2GBB-2075A
- 2
- 235
- 78
- 65
- 22
- 140
- 205
- 45
- 80
- 3.1
- 2.9
- LV2GBB-24135
- 2
- 235
- 135
- 60
- 24
- 200
- 250
- 60
- 83
- 2.8
- 2.5
- LV2GBB-55175
- 2
- 250
- 175
- 85
- 55
- 160
- 200
- 50
- 66
- 3.5
- 3.5
- LV2GBB-55175A
- 2
- 355
- 180
- 155
- 60
- 150
- 200
- 50
- 66
- 3.5
- 3.5
- LV3GBB-0309
- 3
- 30
- 9
- 12
- 3
- 75
- 90
- 15
- 20
- 2.2
- 2
- LV3GBB-0413
- 3
- 37
- 14
- 15
- 4
- 80
- 100
- 15
- 21
- 2.2
- 2.0
- LV3GBB-0820
- 3
- 60
- 20
- 25
- 8
- 160
- 188
- 45
- 62
- 3.7
- 2.8
- LV3GBB-0820A
- 3
- 70
- 20
- 27
- 8
- 155
- 188
- 40
- 62
- 3.7
- 2.8
- LV3GBB-1330
- 3
- 80
- 30
- 36
- 13
- 185
- 215
- 60
- 75
- 3.9
- 3.1
- LV3GBB-1330A
- 3
- 100
- 30
- 39
- 13
- 185
- 215
- 60
- 75
- 3.9
- 3.1
- LV3GBB-2145
- 3
- 110
- 45
- 55
- 20
- 200
- 235
- 70
- 88
- 4.3
- 3.0
- LV3GBB-2145A
- 3
- 125
- 45
- 57
- 21
- 190
- 230
- 65
- 90
- 4.6
- 3.4
- LV3GBB-2755
- 3
- 140
- 56
- 68
- 28
- 215
- 250
- 80
- 90
- 4.6
- 3.4
- LV3GBB-2755A
- 3
- 180
- 58
- 68
- 29
- 200
- 250
- 75
- 90
- 4.6
- 3.4
- LV3GBB-3060
- 3
- 200
- 60
- 70
- 30
- 190
- 225
- 70
- 85
- 4.6
- 3.4
- LV4GBB-0312S
- 4
- 30
- 12
- 10
- 3
- 80
- 100
- 15
- 25
- 2.4
- 1.7
- LV4GBB-0312
- 4
- 40
- 12
- 12
- 3
- 80
- 100
- 15
- 25
- 2.4
- 1.7
- LV4GBB-0415
- 4
- 41
- 16
- 14
- 4
- 80
- 100
- 15
- 23
- 2.4
- 1.7
- LV4GBB-0415A
- 4
- 50
- 17
- 17
- 4
- 75
- 95
- 15
- 23
- 2.4
- 1.7
- LV4GBB-0821
- 4
- 58
- 26
- 21
- 7
- 140
- 170
- 32
- 48
- 3.5
- 2.5
- LVGBB-0825N
- 4
- 55
- 70
- 25
- 8
- 160
- 190
- 35
- 51
- 3.5
- 2.3
- LV4GBB-0925
- 4
- 70
- 30
- 25
- 9
- 155
- 190
- 35
- 48
- 3.7
- 2.6
- LV4GBB-1130
- 4
- 80
- 31
- 31
- 10
- 150
- 190
- 32
- 47
- 3.7
- 2.6
- LV4GBB-1334
- 4
- 90
- 44
- 35
- 13
- 170
- 210
- 40
- 52
- 3.7
- 2.6
- LV4GBB-1334A
- 4
- 110
- 44
- 35
- 13
- 170
- 208
- 40
- 51
- 3.7
- 2.6
- LV4GBB-2454
- 4
- 125
- 44
- 40
- 14
- 170
- 208
- 40
- 51
- 3.7
- 2.6
- LV5GBB-0308
- 5
- 30
- 7.5
- 9
- 3
- 100
- 115
- 22
- 28
- 2.4
- 2
- LV5GBB-0311*
- 5
- 32
- 11
- 10
- 3
- 55
- 75
- 15
- 20
- 2.3
- 2.0
- LV5GBB-0415
- 5
- 50
- 16
- 15
- 4
- 85
- 110
- 23
- 33
- 3.2
- 2.6
- LV5GBB-0415A
- 5
- 57
- 17
- 15
- 4
- 80
- 110
- 23
- 33
- 3.2
- 2.6
- LV5GBB-0832
- 5
- 80
- 32
- 26
- 8
- 155
- 190
- 55
- 65
- 3.3
- 2.8
- LV5GBB-0832A
- 5
- 100
- 33
- 32
- 8
- 145
- 190
- 50
- 65
- 3.3
- 2.8
- LV6GBB-0737
- 7
- 85
- 37
- 25
- 7
- 100
- 140
- 30
- 46
- 3.2
- 2.6
- LV6GBB-0412
- 6
- 44
- 12
- 13
- 4
- 55
- 82
- 20
- 30
- 2.2
- 2.0
- LV7GBB-0737
- 7
- 95
- 37
- 26
- 7
- 100
- 140
- 40
- 55
- 2.7
- 2.6
- LV7GBB-1845**
- 7
- 118
- 46
- 35
- 19
- 110
- 145
- 32
- 40
- 4.3
- 3.0
D,d : Internal Diameter ; s : as supplied ; f : after free recovery ; Tb,Tc : Thickness of body & core ** New Designs
- Code
- No. of Core
- Ds
- d1
- d2
- L
- l1
- l2
- Tb
- Tc
- Tc1
- Ds
- Df
- ds
- df
- ds
- df
- Ls
- Lf
- ls
- lf
- ls
- lf
- f
- f
- f
- min
- max
- min
- max
- min
- max
- min
- min
- min
- min
- min
- min
- ±10%
- ±10%
- ±10%
- LVGBB-61820**
- 2
- 65
- 20
- 44
- 18
- 33
- 6
- 105
- 124
- 28
- 40
- 28
- 40
- 4.0
- 3.1
- 3.0
TECHNICAL SPECIFICATION
- PROPERTIES
- VALUE
- STANDARD
- Physical
- Tensile Strength
- 12 N/mm2 (MPA)(min.)
- ASTM D638
- Ultimate Elongation
- 350% (Min.)
- ASTM D638
- Density
- 1.05 ± 0.2 gm/cm3
- ASTM D792
- Hardness
- 45 ± 10 Shore D
- ASTM D2240
- Water Absorption
- 0.2 % (max.)
- ASTM D570
- Thermal
- Accelerated Ageing
- (120oC for 500 Hrs)
- ASTM D2671
- Tensile Strength
- 11 N/mm2 (Mpa) (min.)
- ASTM D 638
- Ultimate Elongation
- 300%(Min.)
- ASTM D638
- Low temperature Flexibility (-40oC for 4 Hrs.)
- No Cracking
- ASTM D2671
- Heat Shock (250oC for 30 Min.)
- No Cracking or flowing
- ESI 09-11
- Shrink Temperature
- 125oC
- IEC 216
- Continuous Temperature limit
- -40oC to + 110oC
- IEC 216
- Electrical
- Dielectric Strength
- 12 KV/mm. (Min.)
- ASTM D149
- Volume Resistivity
- 1 x 1014 Ohm.cm(min.)
- ASTM D257
- Dielectric Constant
- 5 (Max.)
- ASTM D150
